-High degree of automation, only 2 skilled operators can complete from raw material labeling to finished product packaging;
-Using wire rod servo intermittent transmission + synchronous belt transmission, more efficient, accurate positioning;
-The contact part with the mold frame is made of imported POM material, keep the bottom of the mold frame clean and dust, and meet the requirements of the clean workshop;
-Process control and detection functions are complete: leakage mark CCD detection (and can be automatically removed), inverted tube detection, pipe quantity detection, liquid pump action detection, reagent liquid level detection, drying temperature detection, cap detection, leakage cap detection and automatic discharge (no rubber plug cap, reverse cap), plate leakage detection.

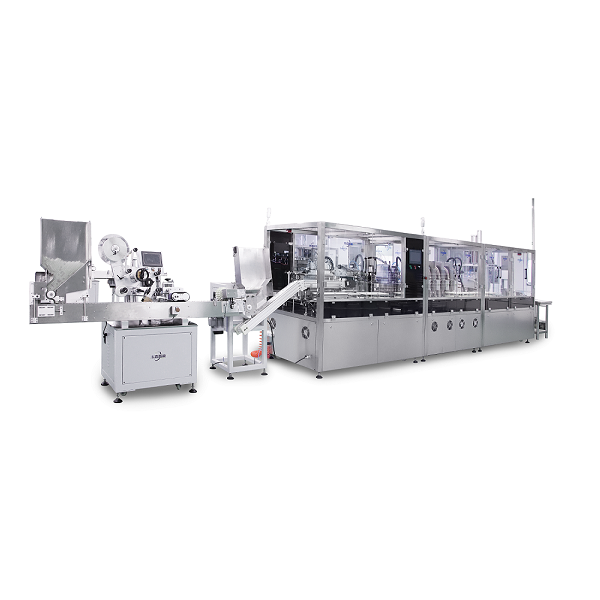

Vacuum vessel production line:
Ø Production efficiency: 16000-19000 pieces / hour (affected by reagent and vacuum degree)
Ø Whole-line operation personnel: 2 people
Ø Applicable test tube specification: 13mm * 75mm and 100mm universal
Ø Test tube material: PET / glass tube
Ø Anticoagulation spray 5 head (US FMI quantitative pump): 5-45ul standard filling amount ± 5% (calculated base 20 uL)
Ø Power supply and power: AC380V± 10% (three-phase and five-wire system), 50 / 60Hz
Ø Sodium citrate filling 5 head: 60-600ul filling quantity accuracy: ± 5ul
Ø 5 head (quantitative pump): 5-35ul standard filling amount ± 6% (calculated base 20 uL, weighing water agent)
Ø Vacuum value: Set the range: -99.9Kpa~0
Accuracy requirement: ± 3% (nominal volume 7ml tube, range 4ml, pure water balance test)
Ø Length * width * height: 9 coagulation line 9.5 m * 2.2 m * 1.8 m
Ø Power supply: 380V / 50 HZ Power: 24KW
Ø Gas consumption: clean compressed air pressure: 0.6~0.8Mpa, gas consumption: <600L / / min
Ø Weight: 1,000 KG
Ø Noise level: 75 db
